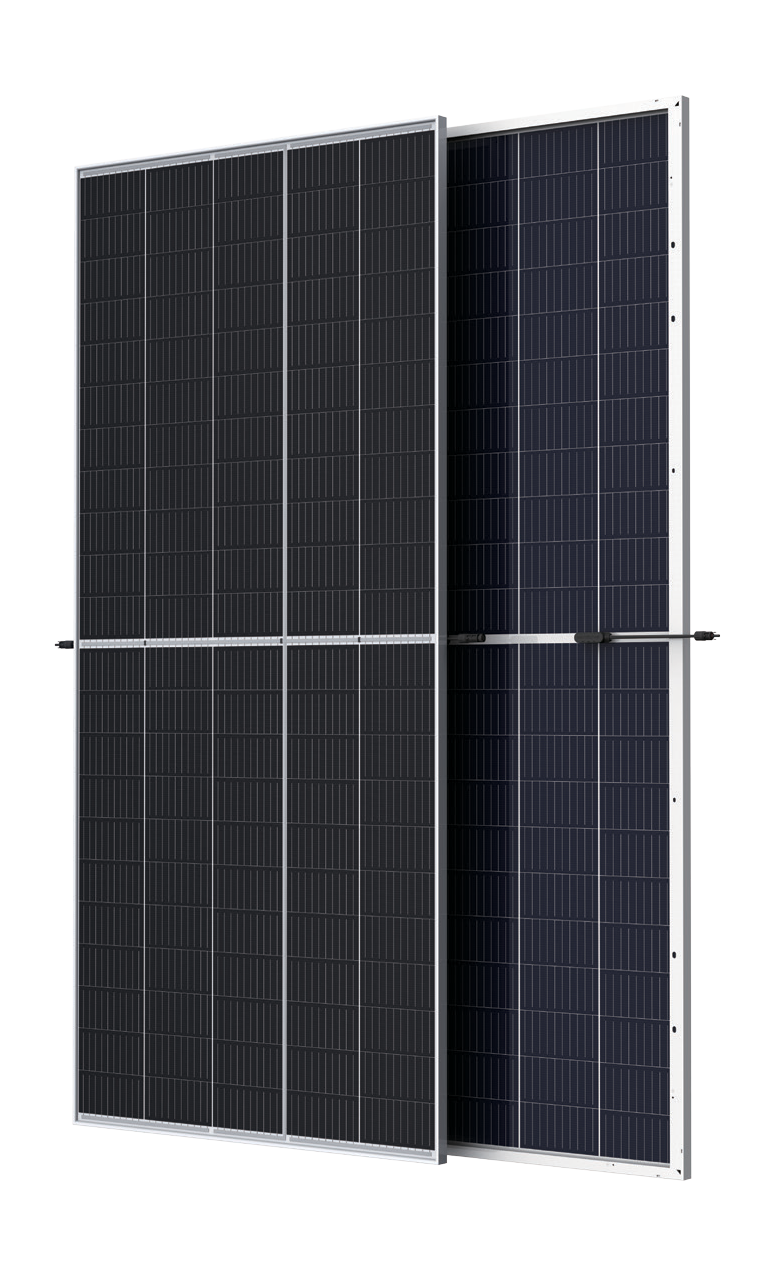

Trina Solar Vertex Bifacial Dual Glass Monocrystalline Module

Description

1. Product Type: Bifacial Dual Glass Monocrystalline Module.
2. Power Output: 530W – 550W.
3. Efficiency: Up to 21.0%.
4. Key Technologies:
   • Multi-Busbar Technology: Improves light trapping, lowers series resistance, and enhances current collection.
   • High-Density Interconnect Technology: Increases module efficiency.
   • Non-Destructive Cutting Technology: Minimises micro-cracks.
5. Performance:
   • High power output up to 550W.
   • Excellent performance in low-light conditions and high energy yield.
   • Up to 25% additional power gain from the rear side, depending on albedo.
   • Lower temperature coefficient (-0.34%) for better performance in high temperatures.
6. Durability:
   • Resistant to harsh environments: salt, ammonia, sand, high temperature, and high humidity.
   • Mechanical load resistance: up to 5400 Pa for positive load and 2400 Pa for negative load.
   • Certified to fire class A.
7. Certifications:
   • IEC61215, IEC61730, IEC61701, IEC62716.
   • ISO 9001 (Quality Management System).
   • ISO 14001 (Environmental Management System).
   • ISO 45001 (Occupational Health and Safety Management System).
   • ISO14064 (Greenhouse Gases Emissions Verification).
8. Warranty:
   • 12-year product workmanship warranty.
   • 30-year power warranty with 0.45% annual power attenuation and 2% first-year degradation.
9. Mechanical Specifications:
   • Dimensions: 2384 × 1096 × 35 mm.
   • Weight: 32.6 kg.
   • Front and Back Glass: 2.0 mm AR-coated, heat-strengthened glass.
   • Frame: 35 mm anodized aluminum alloy.
   • Junction Box: IP68 rated.
10. Temperature Ratings:
    • Operational temperature range: -40°C to +85°C.
    • Maximum system voltage: 1500V DC.
    • Max series fuse rating: 35A.
    • Temperature coefficients: Pmax (-0.34%/°C), Voc (-0.25%/°C), Isc (+0.04%/°C).
