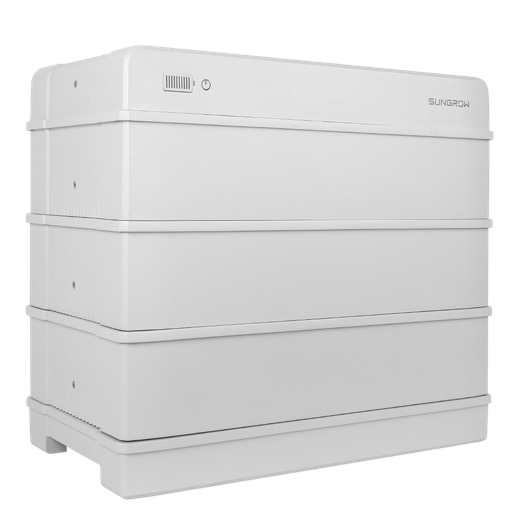

Sungrow SBR High Voltage LFP Battery

Description

1. Product Type: High Voltage Lithium Iron Phosphate (LFP) Battery.
2. Models Available: SBR096, SBR128, SBR160, SBR192, SBR224, SBR256.
3. Capacity Range:
   • Supports 3-8 modules per unit.
   • Capacity range from 9.6 kWh to 25.6 kWh per unit.
   • Maximum capacity with parallel units: 9–100 kWh.
4. Efficiency:
   • Up to 100% usable energy.
   • Up to 30 A continuous charging and discharging current.
5. Safety Features:
   • Multi-stage protection design.
   • Extensive safety certifications: CE, CEC, IEC 62619, IEC 62040, UN 38.3, VDE 2510-50.
   • Over/under voltage, overcurrent, over/under temperature protection, and DC breaker included.
6. Flexibility:
   • Extendable during lifetime.
   • Modular design allows for easy expansion.
   • Supports up to 4 units in parallel.
7. Installation:
   • Compact and lightweight for single-person installation.
   • Plug and Play design, no cables needed between battery modules.
   • Suitable for indoor/outdoor installation.
   • Floor stand mounting method.
8. Operating Conditions:
   • Charging temperature range: 0°C to 50°C.
   • Discharging temperature range: -20°C to 50°C.
   • Degree of protection: IP55.
   • Maximum operating altitude: 4000 m.
   • Cooling method: Natural convection.
9. Warranty: 10 years.
10. Dimensions and Weight (varies by model):
    • Example for SBR256:
      • Dimensions: 625 x 1195 x 330 mm.
      • Weight: 279 kg.
