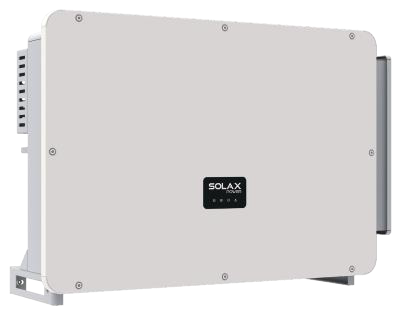

Solax X3-FORTH Inverter

Description

1. Product Type: Three-Phase String Inverter.
2. Power Capacity: Available in 75 kW, 80 kW, 100 kW, 120 kW, 125 kW, 136 kW, and 150 kW variants.
3. Input (DC):
   • Max. PV input power: 188 kWp to 225 kWp.
   • Max. PV input voltage: 1100V.
   • MPPT voltage range: 180V to 1000V.
   • Number of MPPT trackers: 9 to 12.
   • Max. PV input current per MPPT: 32A.
   • Max. PV array short circuit current per MPPT: 46A.
4. Output (AC):
   • Rated AC output power: 75 kW to 150 kW.
   • Max. AC output current: 87A to 200A.
   • Nominal AC voltage: 220/380V, 230/400V, 500/540V.
   • Nominal AC frequency: 50/60 Hz.
   • Total Harmonic Distortion (THD): <3%.
   • Power Factor range: 0.8 leading to 0.8 lagging.
5. Efficiency:
   • Max. efficiency: 99.0%.
   • MPPT efficiency: 99.9%.
6. Protection Features:
   • IP66 protection level.
   • Arc-fault circuit interrupter (AFCI) optional.
   • AC terminals over temperature detection.
   • DC and AC surge protection devices (Type II).
   • Built-in export power control.
   • Remote setting and upgrading.
   • Night-time reactive power compensation.
7. Cooling and Monitoring:
   • Smart air cooling technology for long fan lifetime.
   • Advanced heat dissipation technology.
   • Communication interfaces: RS485, USB, DRM, PLC (optional).
   • Optional monitoring dongle: Pocket WiFi, LAN, 4G.
   • Display: LCD (16×2, optional), LED.
8. General Data:
   • Operating ambient temperature range: -30°C to +60°C (derating above 45°C).
   • Max. operation altitude: 4000 m (derating above 3000 m).
   • Ingress protection: IP66.
   • Dimensions: 985 x 660 x 327.5 mm.
   • Weight: 83 kg to 87 kg.
9. Certifications and Compliance:
   • Safety: IEC/EN 62109-1, IEC/EN 62109-2, NB/T 32004.
   • EMC: IEC/EN 61000, NB/T 32004.
   • Grid Compliance: EN 50549, AS4777.2, VDE4105, IEC 61727, IEC 62116, IEC 61683, IEC 60068, EN 50530.
