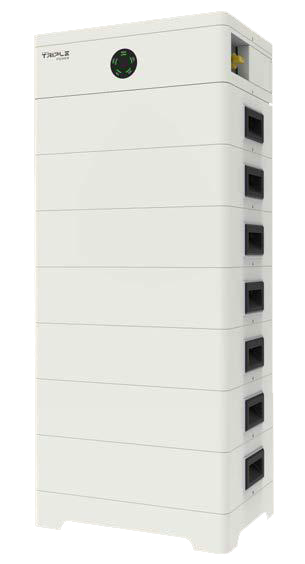

Solax T-BAT-SYS-HV-S3.6 battery

Description

1. Product Type: High Voltage Lithium-Ion (LFP) Battery System.
2. Models Available: T-BAT HS7.2 to T-BAT HS46.8.
3. Capacity Range:
   • Nominal Capacity: 7.3 kWh to 47.9 kWh.
   • Usable Energy (90% DOD): 6.5 kWh to 43.1 kWh.
4. Performance:
   • Max. Continuous Charging/Discharging Current: 50A.
   • Nominal Power: 3.5 kW to 23.2 kW.
   • Max. Power: 5.1 kW to 33.2 kW.
5. Safety Features:
   • Reliable LFP battery cells.
   • Battery heating technology for low-temperature operation.
   • Over 6000 cycles of life expectancy.
   • Soft start feature to protect batteries and inverters from sudden surges.
6. Installation:
   • Stackable modules for easy and fast single-person installation.
   • Pre-wired communication cables for plug-and-play setup.
   • IP65 rated for indoor and outdoor installation.
7. Flexibility:
   • Extendable capacity during the product lifetime.
   • Communication interfaces: RS485 and CAN.
   • Remote diagnosis and updates via inverter.
8. Operating Conditions:
   • Charging temperature range: 0°C to 53°C without heating, -30°C to 53°C with heating.
   • Discharging temperature range: -20°C to 53°C.
   • Maximum operating altitude: < 3000 m.
9. Dimensions and Weight (varies by model):
   • Example for T-BAT HS46.8:
     • Dimensions: 510 × 365 × 1195 mm + 510 × 365 × 1058 mm.
     • Weight: 454.3 kg.
10. Certifications:
    • IEC62619, IEC60730, IEC62040, CE, UN38.3.
