Canadian Solar

Description

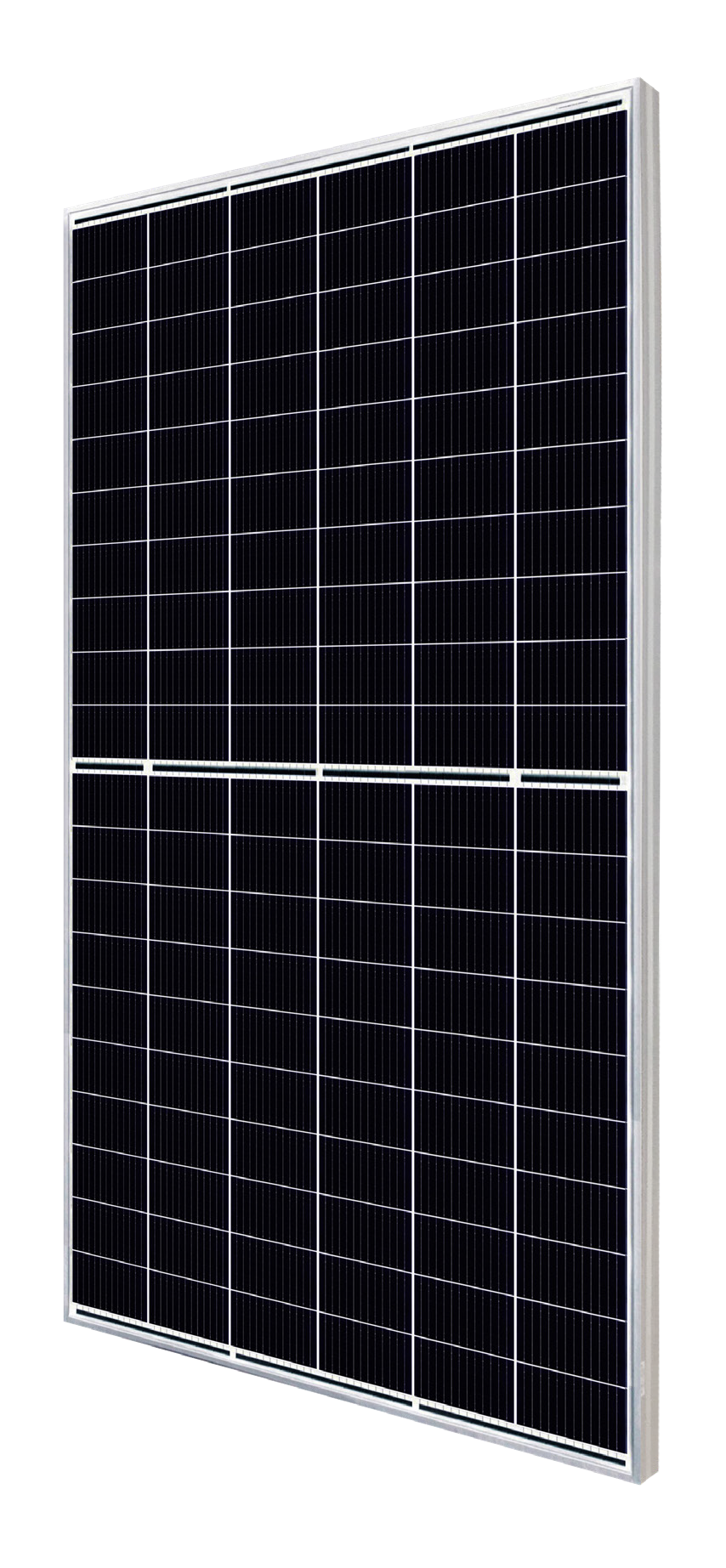

1. Product Type: HiKu7 Mono PERC Solar Module.
2. Power Output: 575W – 605W.
3. Efficiency: Up to 21.4%.
4. Key Technologies:
   • Comprehensive LID/LeTID mitigation technology, reducing degradation by up to 50%.
   • Minimizes micro-crack impacts and hot spot temperatures, greatly reducing module failure rates.
   • Better shading tolerance.
5. Cost Efficiency:
   • Up to 3.5% lower Levelized Cost of Energy (LCOE).
   • Up to 5.7% lower system costs.
6. Durability:
   • Heavy snow load up to 5400 Pa.
   • Wind load up to 2400 Pa.
7. Certifications:
   • ISO 9001:2015 (Quality Management)
   • ISO 14001:2015 (Environmental Management)
   • ISO 45001:2018 (Occupational Health & Safety)
8. Warranty:
   • 12 years enhanced product warranty on materials and workmanship.
   • Linear power performance warranty with no more than 2% degradation in the first year and 0.55% annually thereafter.
9. Mechanical Specifications:
   • Dimensions: 2172 ˣ 1303 ˣ 35 mm.
   • Weight: 31.4 kg.
   • Front Cover: 3.2 mm tempered glass.
   • Frame: Anodized aluminum alloy with crossbar enhancement.
10. Temperature Characteristics:
    • Temperature Coefficient (Pmax): -0.34% / °C.
    • Temperature Coefficient (Voc): -0.26% / °C.
    • Temperature Coefficient (Isc): +0.05% / °C.
